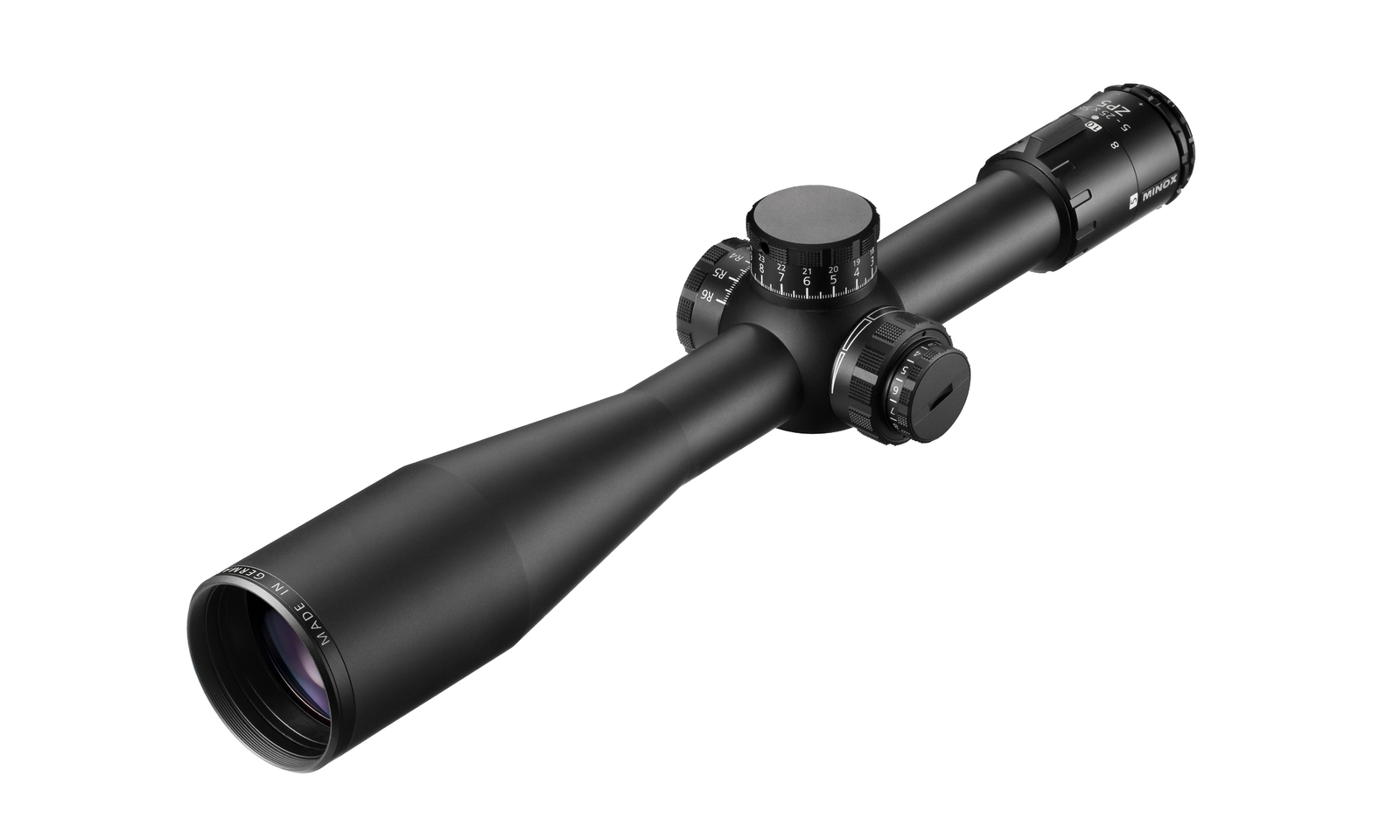

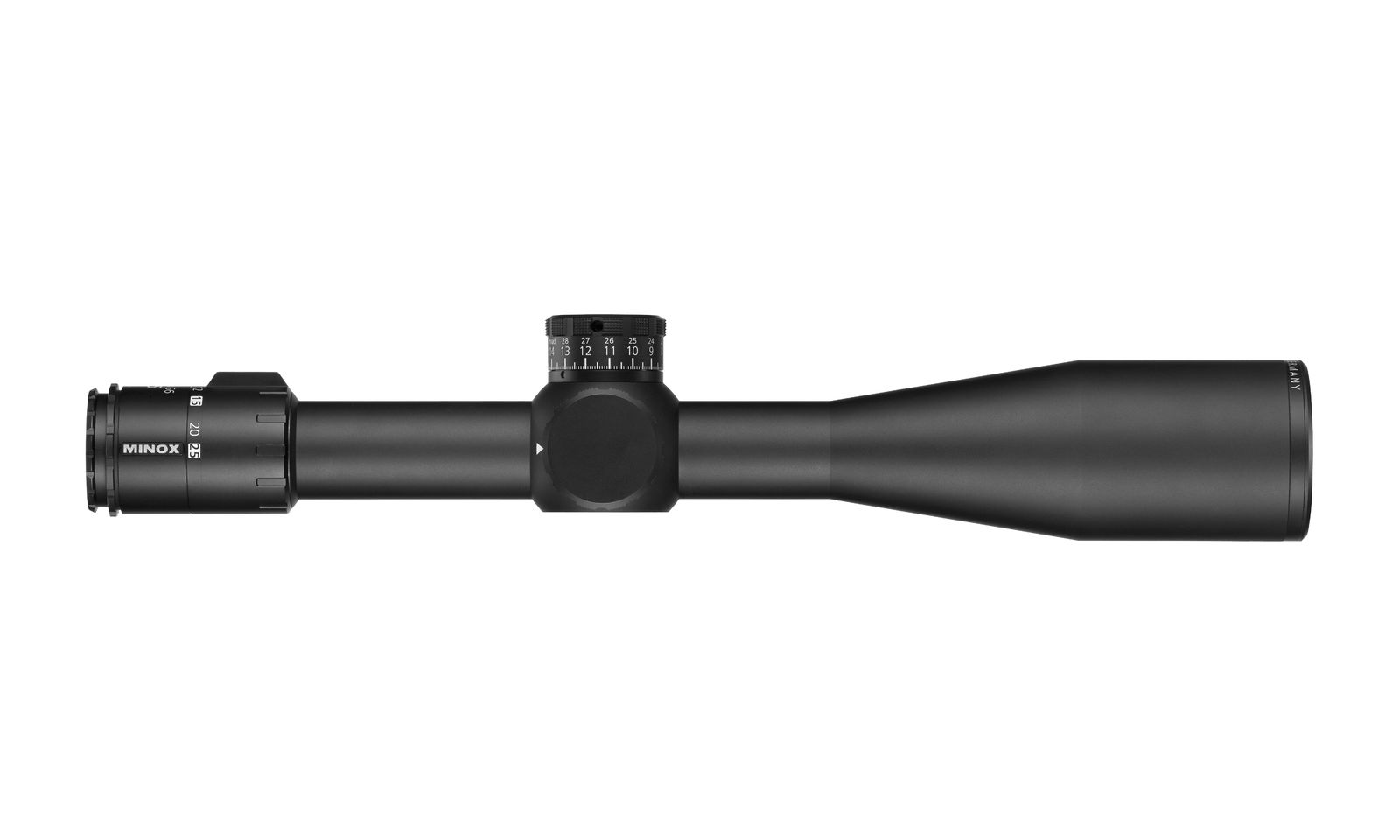

The ZP5 3-15x50 is the universal tactical riflescope with a wide range of use. The 3x magnification offers a large field of view for operations at close quarters whereas the 15x magnification guarantees the necessary range when needed. Product Features
● 5x zoom ratio with large field of view
● Sophisticated tactical reticles in the first focal plane with finely dimmable illumination
● 28 mrad double turn elevation with zero stop and visible indicator for the second revolution
● Parallax adjustment from 50 m to infinity within 180° of rotation

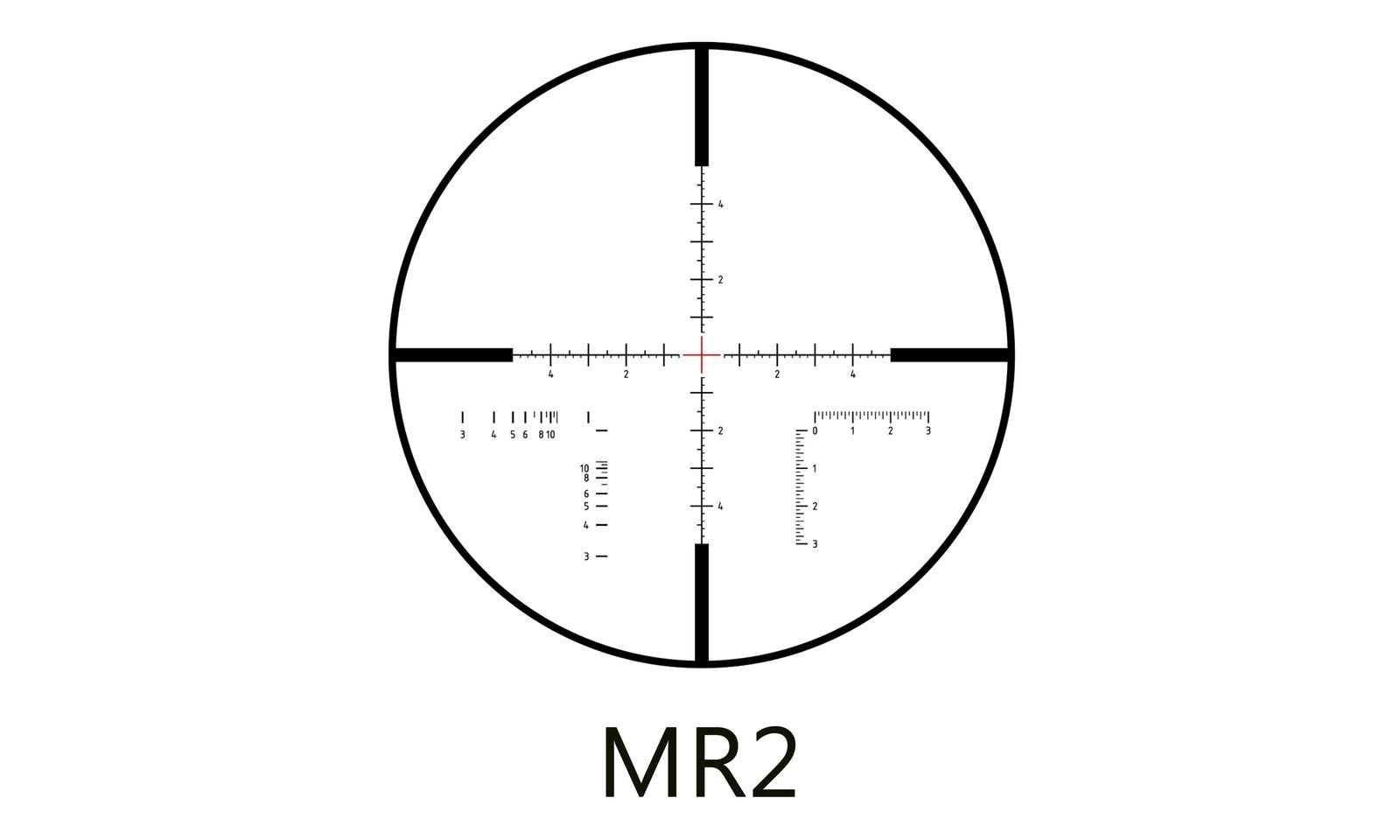

● Available reticles: MR2, MR5, Mildot
For professional requirements.
Reliable service is a result of many factors – with the ZP series MINOX delivers a line of tactical riflescopes that combine mechanical precision, optical quality and ruggedness at the highest level.
All that combined with innovative, practical features that allow the user to always stay in control even under adverse conditions. The result are tactical scopes that are purpose-built to master the challenges of professional use under extreme conditions.
ZP Product Features
● Precise mechanics and rugged construction for repeatability under harsh conditions
● 34 mm main tube with solid wall thickness made from aircraft grade aluminium
● Very large field of view and highest image quality even at the edges of the field of view thanks to complex optical design and use of special glass types
● M* multi-coating on the optical elements provides excellent light transmission, contrast and colour rendition
● Generous eye relief of 90 mm for use on large caliber rifles
● Quick and reliable operation under low light conditions due to ergonomic design of the controls
● Fast-focus eyepiece can be secured against accidental adjustment
● Tough flip-up caps for objective and ocular (included)
● Sophisticated tactical reticles for every application, illumination with automatic shut-off after 3 h
● Argon gas purged: Waterproof down to 15 m and fogproof
While MINOX optical equipment is built to operate perfectly in harsh environments, uncontrollable things can happen in the field which can result in unexpected damage. That is why MINOX provides a *Total Coverage Warranty protection for all MINOX sport optics products - MINOX will repair or replace any damaged product with no questions asked.
*This warranty is only valid if the product has been registered online and does not cover fire, theft, loss, or intentional damage. Applicable only to permanent residents of the USA or Canada. For more information see
Minox website
Manufacturer: |
Minox |
Model: |
Zp5 |
Part Number: |
66595 |
Field of view low power |
13 m / 14 yd |
Field of view high power |
3 m / 3 yd |
Diopter adjustment |
-3 / +2.5 dptr. |
Eye relief |
~90.0 mm / 3543.3 thou |
Exit pupil low power |
11.5 mm / 452.8 thou |
Exit pupil high power |
3.5 mm / 137.8 thou |
Elevation travel |
28 mrad |
Windage travel |
±6 mrad |
Tube diameter |
34.0 mm / 1338.6 thou |
Position of reticle |
1st focal plane |
Available reticles |
mr2, mr5, mildot |
Product Dimensions (L x W x H): |
15.0 x 15.0 x 34.5 cm. / 5.91 x 5.91 x 13.58 in. |
Product Weight: |
920.0 g. / 2 lb. |
Shipping Dimensions (L x W x H): |
15.0 x 15.0 x 34.5 cm. / 5.91 x 5.91 x 13.58 in. |
Shipping Weight: |
920.0 g. / 2 lb. |
Shipped by |
Custom Shop, LLC |
