Price:

$7,000.00


Product Description
This item cannot be shipped and you will need to pick it up with a truck and trailer.

Works great but I do not use the four spindles and am buying a smaller machine.

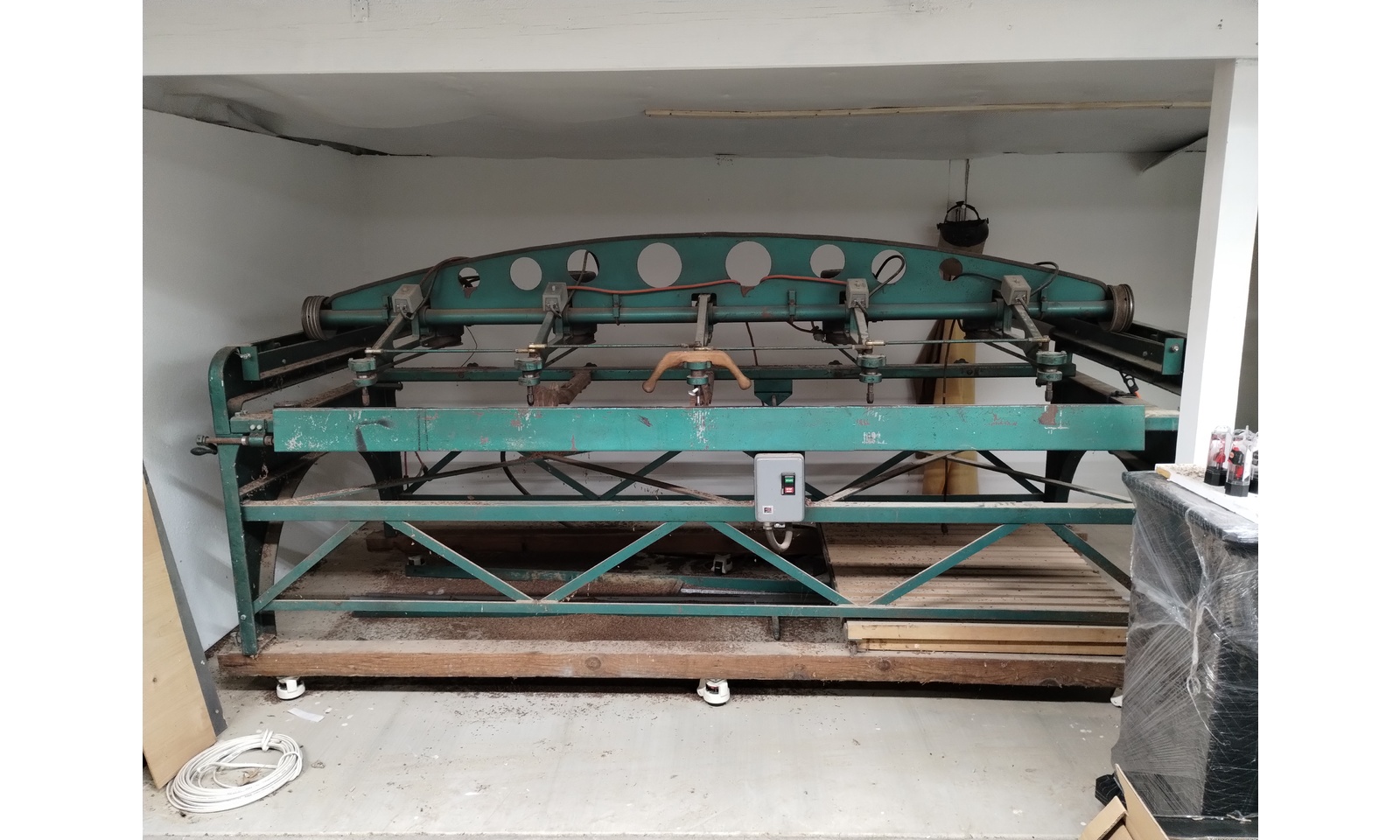

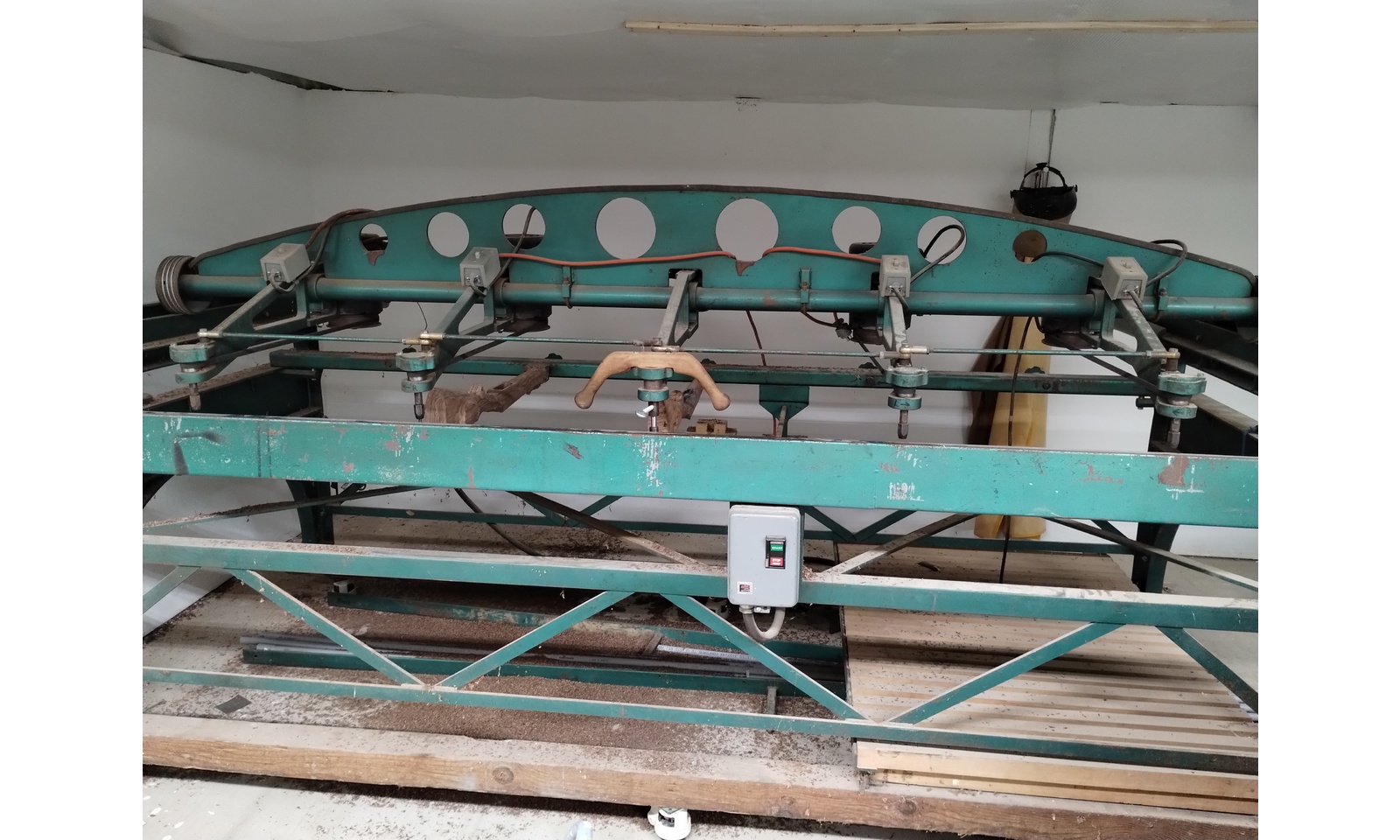

Kurt Northstar Mastercarver Model 5500 - This machine is used to make four duplicates simultaneously, of any carvable material.  For example, if you have an intricate frame of table leg you want to make four of, just run the stylus over the original, and the router heads cut duplicates from the material you have mounted.  If you want to duplicate signs, gun stocks, table legs, or anything with those dimensions, this is the machine for you.

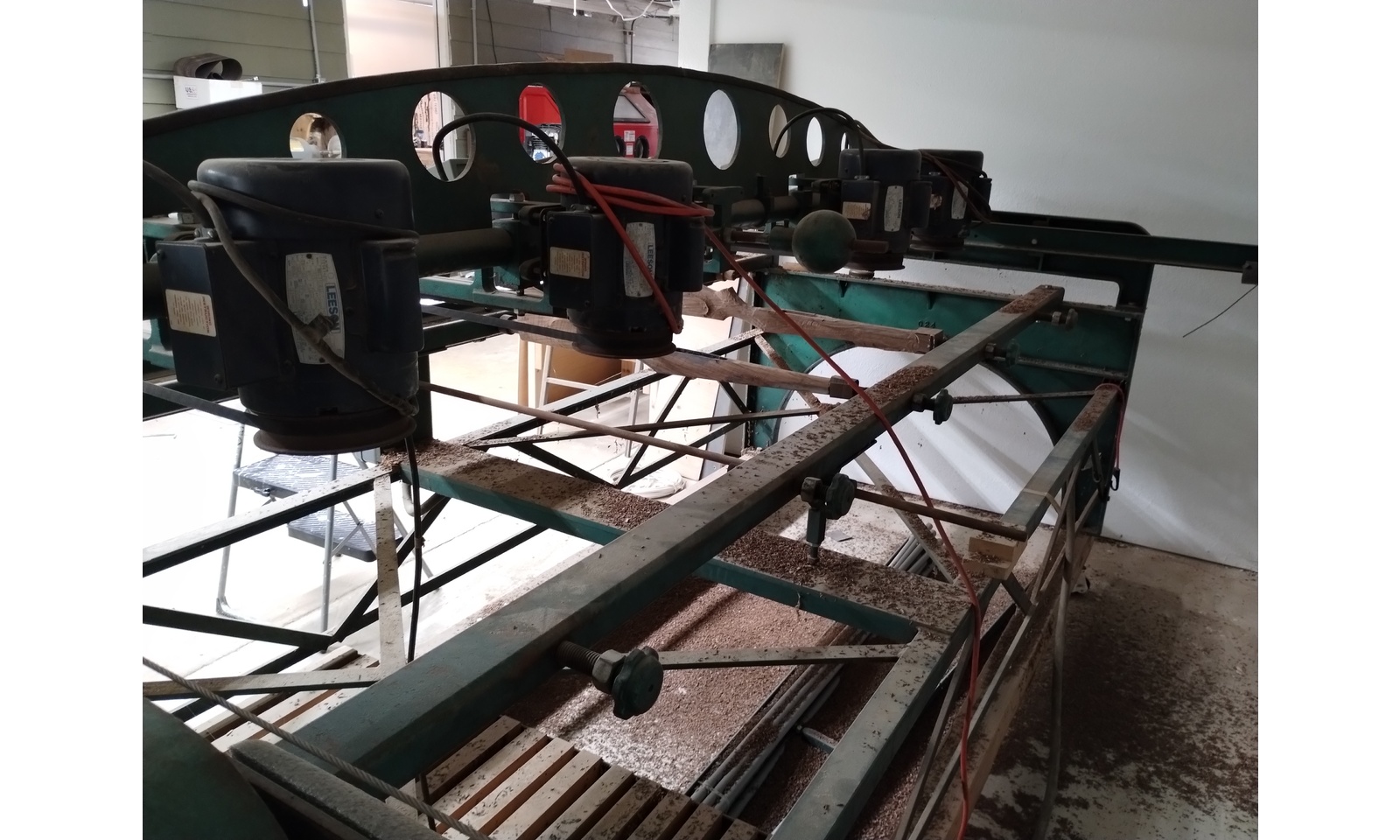

The unit has four, half-HP router heads.  Two run clockwise and two run counterclockwise to compensate for torque. It is capable of copying a 20” x 35” flat or 20” x 35” 3 dimensional.  It is good for home or business since it operates on 110 single-phase power.  The footprint is 116” Wide by 68” in diameter.  It’s approximately 2000 pounds on skids and we have installed leveling caster wheels so it can roll into place and you can lock them.

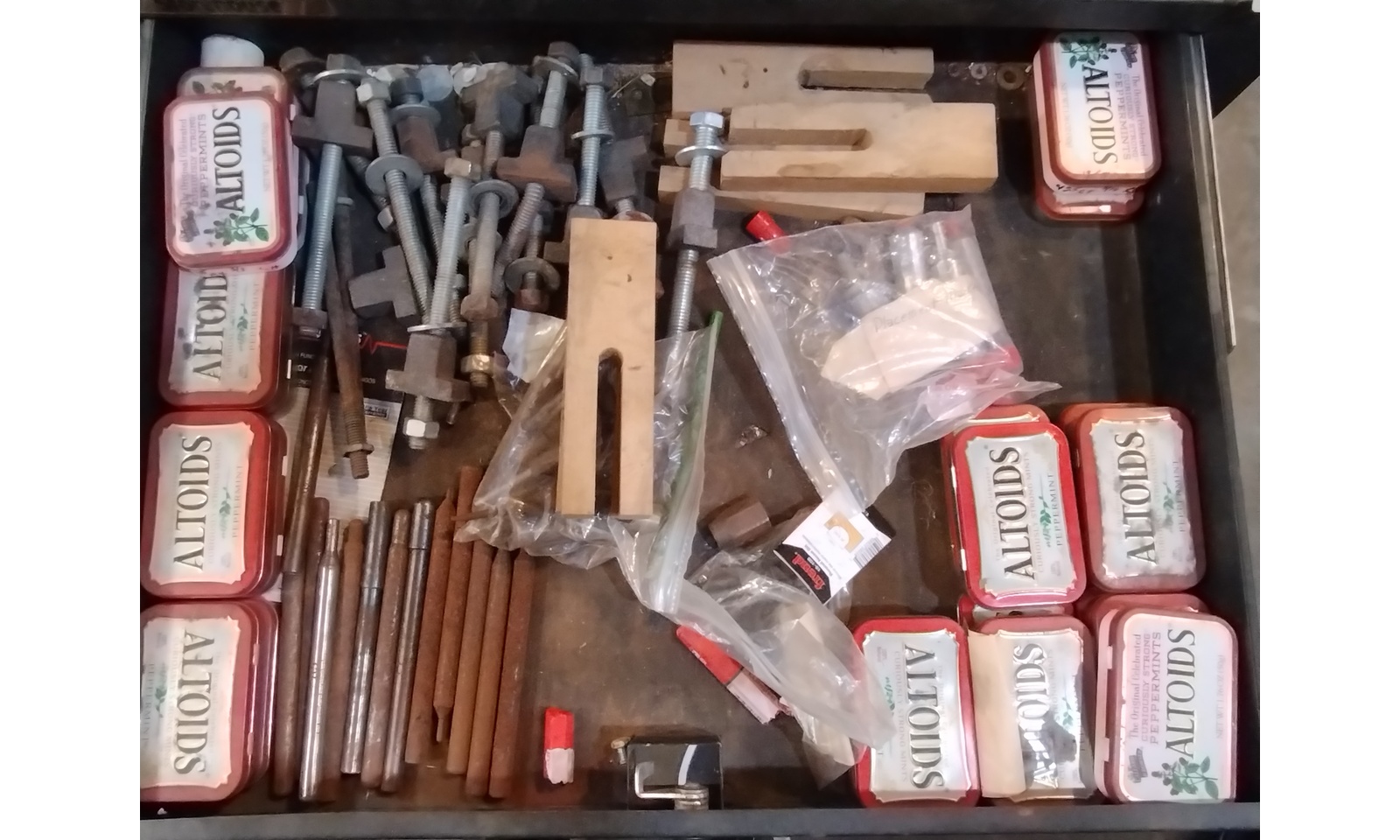

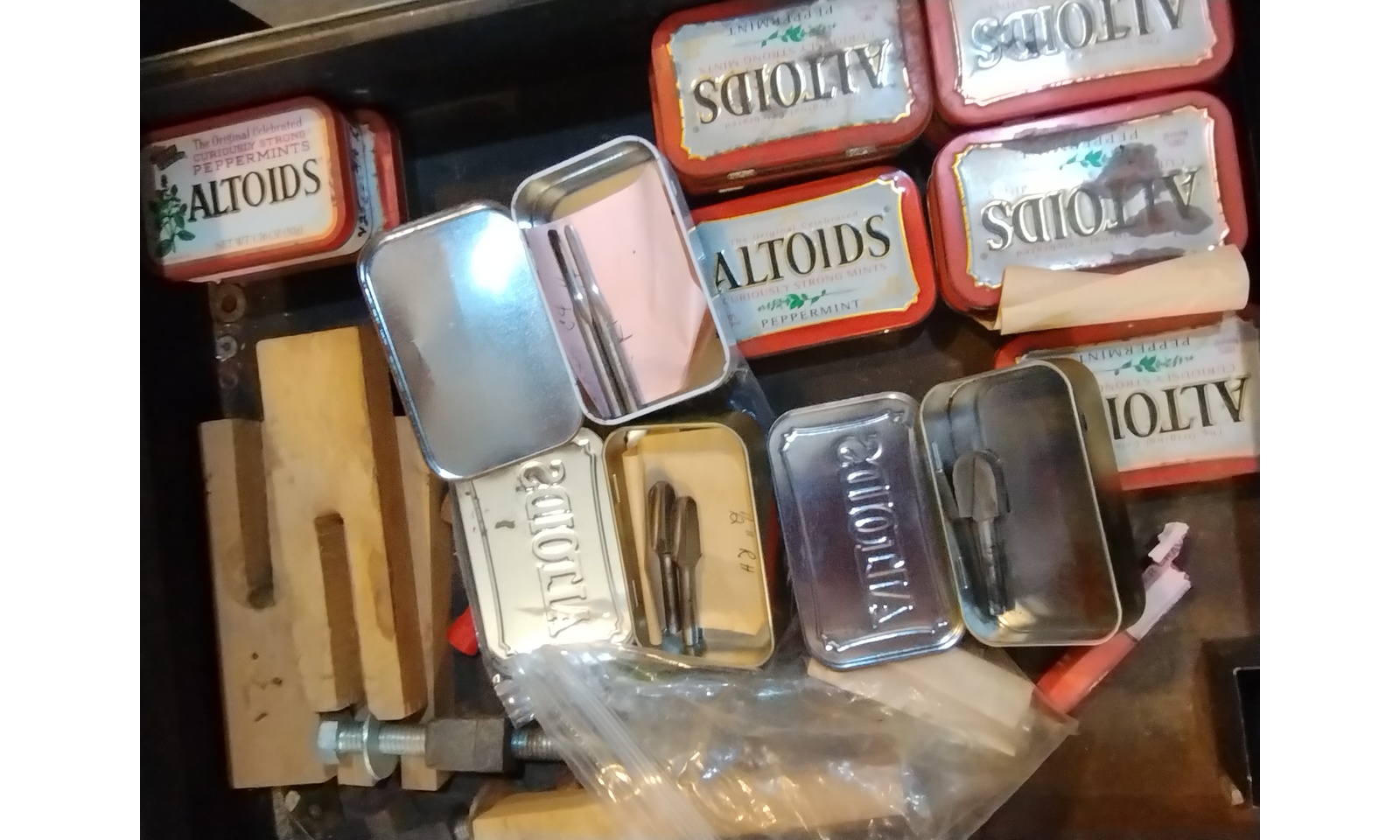

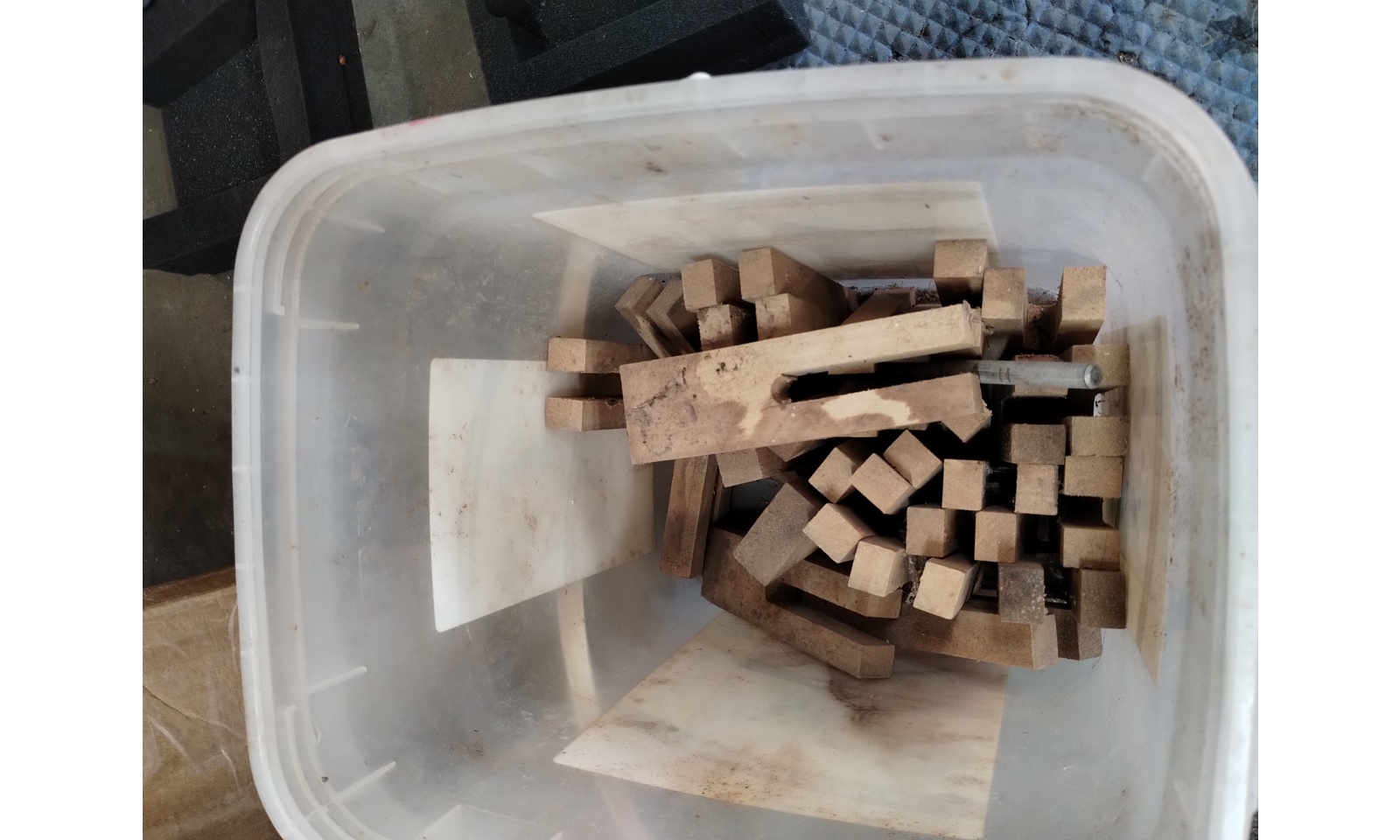

The bearings have been replaced in all of the heads, new belts, and stylus.  Also included are clamps and bits.  Some of the bits are for clockwise and others for counterclockwise rotation.  Included also is a book and sourcing information.


Product Information

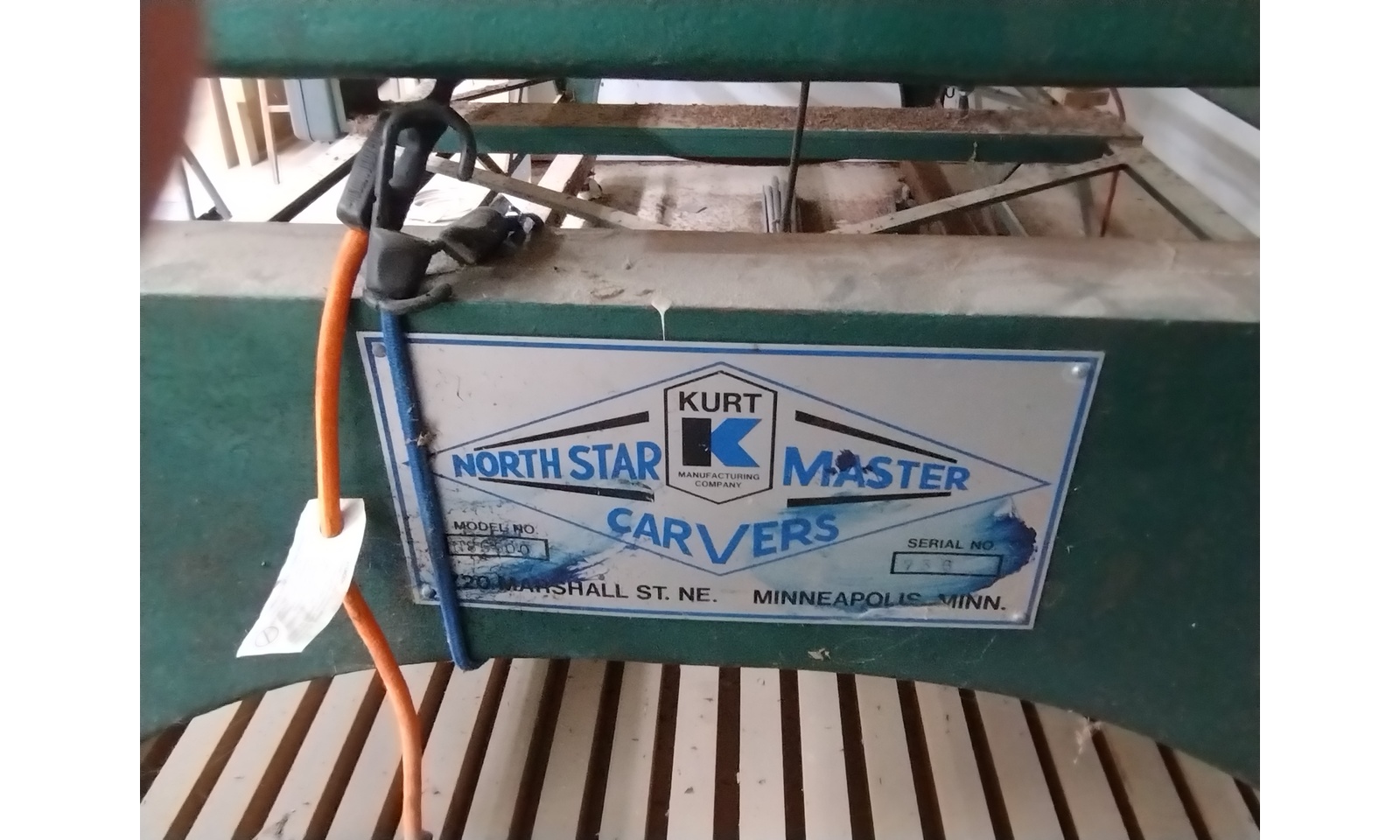

Manufacturer: North Star
Model: 5500
Material: Steel
Type: Duplicator
Shipping Dimensions (L x W x H): 0.0 x 0.0 x 0.0 cm. / 0.0 x 0.0 x 0.0 in.
Shipping Weight: 0.0 g. /
